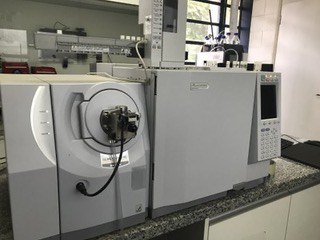

GCMS-QP2010 SE

Mass Spectrometer QP-2010 SE

Ion Analyzer: Quadrupole, EI, with variable energy between 10 and 200 eV. Ionization current between 5 and 250uA and selectable temperature between 140 to 260 ° C. Analysis Modes: Ion Scan (full scan), selected Ion monitoring (SIM method) and simultaneous SIM and SCAN scanning; Mass Range: 1.5 to 1000 u.m.a; Scanning speed: 10,000 u.m.a. /Mon. Sensitivity: For EI mode: Octafluoronaphthalene 1pg m / z 272 - SCAN S / R> 600: 1; Number of ions selected in Scan mode: (64 channels x 128 masses); Gas chromatograph, GC-2010 Plus, consisting of split / Splitless capillary injector and automatic pressure and flow controller. Temperature Range: maximum 450 ° C. Oven cooling capacity from 450 ° C to 50 ° C in 3.4 min. Heating Program: 20 ramps and 21 plateaus. Electronic Flow and Pressure Controller, model AFC-2010, with automatic adjustment through the software: Pressure Range: 0 to 970 KPa (141 PSI); Flow Range: 0 to 1200 ml / min. Split / Splitless injector model SPL-2010 Plus. Flame Ionization Detector (FID), model FID-2010 Plus (with APC).
